Introduction

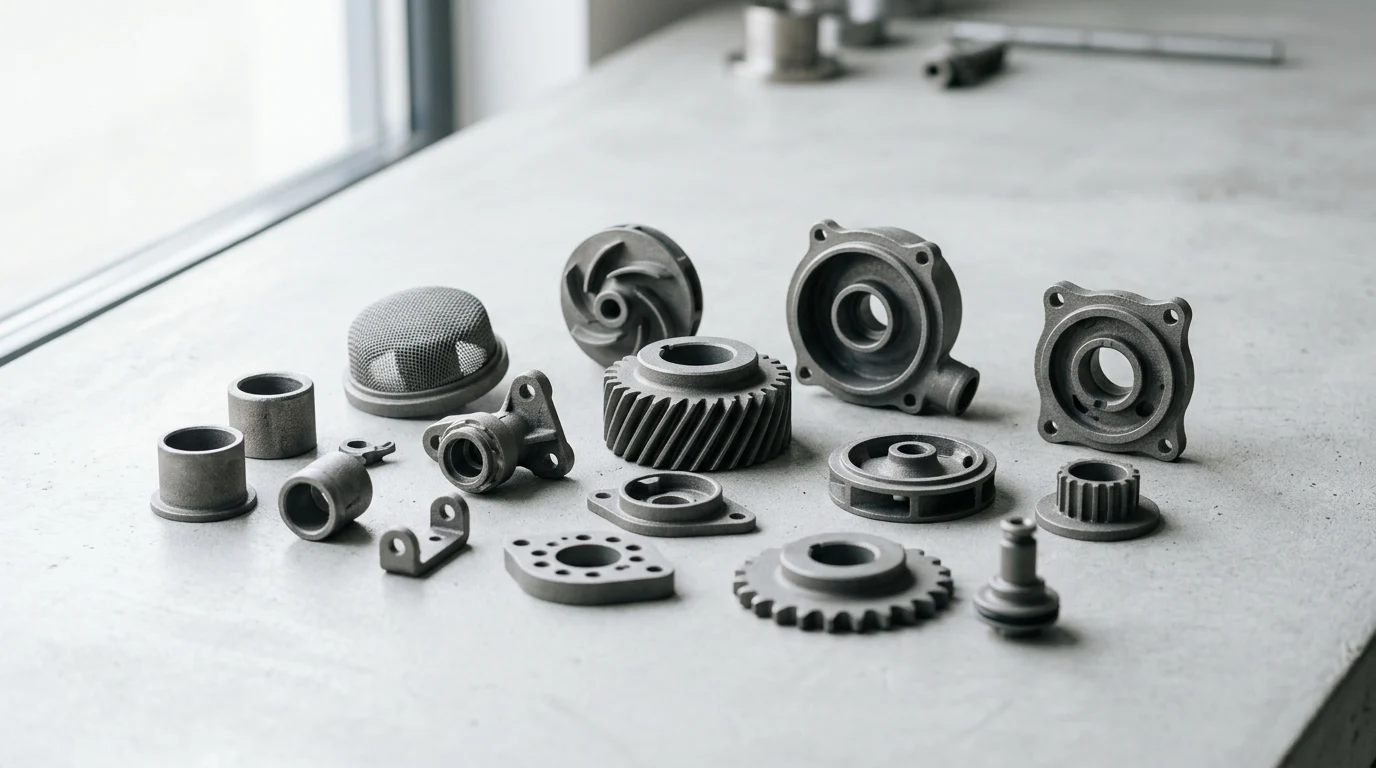

Sintered metal parts are made by compacting metal powders and bonding them with heat, creating components that can be produced with high consistency, minimal waste, and lower unit cost than many machined alternatives. They are widely used when manufacturers need complex shapes, controlled porosity, or reliable performance at scale. This article explains the main materials used in sintering, the core manufacturing methods behind powder metallurgy, and the practical benefits these parts offer across industrial applications. With that foundation, the rest of the discussion will make it easier to evaluate where sintered components fit in design, sourcing, and production decisions.
Why sintered metal parts matter in modern manufacturing
The shift toward highly efficient, scalable manufacturing has positioned sintered metal parts as foundational elements in modern industrial supply chains. By utilizing powder metallurgy to form solid components from metal powders, manufacturers bypass the extensive material waste and prolonged cycle times associated with traditional subtractive methods.
Cost, repeatability, and efficiency benefits
The primary drivers for adopting sintered metal parts are cost reduction, precise repeatability, and overall process efficiency. Traditional machining can result in scrap rates exceeding 50% for complex geometries. In contrast, the powder metallurgy process typically yields scrap rates below 5%, as excess powder is easily captured and recycled. Furthermore, automated mechanical or hydraulic presses achieve production speeds ranging from 1,000 to over 3,000 parts per hour. This ensures unit costs remain exceptionally low at high volumes while maintaining tight dimensional consistency across production runs.
Common applications across industries
Because of these efficiencies, sintered metal parts are ubiquitous across multiple heavy-duty and precision industries. The automotive sector dominates the market, consuming approximately 70% of all powder metallurgy output for components such as engine sprockets, transmission gears, and oil pump rotors. Beyond automotive applications, these parts are critical in industrial machinery, power tools, consumer appliances, and medical devices, where specialized alloys are used to meet stringent performance and regulatory criteria.
What sintered metal parts are and how they are made
Understanding the fundamental mechanics of powder metallurgy is essential for engineers and procurement professionals looking to leverage its advantages. The process relies on the controlled application of pressure and thermal energy to transform loose metallic particles into a coherent, durable solid.
Powder metallurgy process overview
The manufacturing cycle begins with the precise blending of elemental or pre-alloyed metal powders with specialized solid lubricants. This mixture is gravity-fed into a rigid precision die and subjected to immense pressure, typically ranging from 20 to 50 tons per square inch (TSI), creating a fragile "green" part. The green compacts are then transferred to a continuous belt furnace for sintering. During this stage, the parts are heated in a controlled, inert atmosphere to temperatures just below the melting point of the base metal—usually between 1,120°C and 1,250°C for iron and steel alloys. This thermal exposure causes the powder particles to bond at an atomic level through solid-state diffusion, significantly increasing the structural integrity of the component.
Materials, density, tolerances, and surface finish
The mechanical properties of sintered metal parts are largely dictated by the chosen material and the final density achieved during compaction. Standard materials include iron, carbon steel, copper, and stainless steel. Final part densities generally range from 6.0 to 7.4 g/cm³, with higher densities correlating directly to greater tensile strength and impact resistance.
| Material Type | Typical Density Range (g/cm³) | Yield Strength (MPa) | Common Application |
|---|---|---|---|
| Iron-Copper-Carbon | 6.2 - 6.8 | 250 - 450 | Structural gears, sprockets |
| Sintered Stainless (316L) | 6.4 - 6.9 | 150 - 250 | Corrosion-resistant fittings |
| Bronze (Oil-impregnated) | 5.8 - 6.4 | 100 - 150 | Self-lubricating bearings |
Dimensional tolerances are another critical factor. Standard press-and-sinter operations routinely hold IT8 to IT9 tolerance grades (for example, ±0.05 mm on a 25 mm dimension) without the need for secondary machining. Surface finishes directly out of the sintering furnace typically measure between Ra 1.6 and 3.2 µm, which is suitable for the vast majority of mechanical applications.
How sintered metal manufacturing methods compare
While traditional powder metallurgy serves as the industry standard, alternative forming methods and secondary processes have expanded the design envelope for sintered metal parts. Selecting the right approach requires balancing geometric complexity against production costs.
Press-and-sinter vs MIM and secondary operations
The standard press-and-sinter method relies on uniaxial compaction, meaning pressure is applied along a single vertical axis. This restricts the process to parts that can be easily ejected from a die, making it ideal for flat gears or stepped profiles. Metal Injection Molding (MIM), however, blends fine metal powder with a thermoplastic binder, allowing the material to be injected into complex, multi-part molds similar to plastic injection molding. MIM permits intricate 3D geometries, including undercuts and cross-holes. However, it involves a distinct debinding stage and exhibits high volumetric shrinkage of 15% to 20% during sintering. When standard press-and-sinter parts require tighter tolerances or enhanced properties, secondary operations such as coining (re-pressing), oil impregnation, or copper infiltration are frequently employed.
Tooling cost, volume, and design considerations
Tooling investments and production volumes are the primary commercial differentiators between these manufacturing methods. Standard powder metallurgy tooling is highly robust, often manufactured from tungsten carbide, with costs ranging from $5,000 to $50,000 depending on complexity. To amortize this initial capital expenditure, manufacturers typically enforce Minimum Order Quantities (MOQs) starting at 10,000 to 20,000 units. MIM tooling follows similar cost structures but caters to smaller, more complex parts where traditional machining would be economically unviable.
| Process | Max Part Weight | Geometric Complexity | Typical Tooling Cost | Standard MOQ |
|---|---|---|---|---|
| Press-and-Sinter | Up to 5 kg | Low to Moderate (2.5D) | $5,000 - $30,000 | 10,000+ |
| Metal Injection Molding | < 250 grams | High (True 3D) | $10,000 - $50,000 | 5,000+ |
| CNC Machining | Virtually unlimited | High | Minimal (Fixturing) | 1+ |
Process control and inspection
Maintaining consistent quality in sintered metal parts necessitates rigorous process control. Advanced manufacturers utilize automated coordinate measuring machines (CMM) and inline mass-measuring stations to monitor dimensional stability and green part density before the sintering phase. Because temperature fluctuations in the sintering furnace can alter final part dimensions, continuous atmospheric and thermal monitoring is deployed. Through strict statistical process control (SPC), top-tier suppliers drive defect rates below 50 parts per million (PPM), ensuring reliable integration into automated assembly lines.
Benefits and trade-offs of sintered metal parts
Evaluating sintered metal parts for a new product design involves a careful analysis of their inherent strengths and physical limitations. While the economic advantages are compelling, the metallurgical reality of sintered structures must align with the end-use environment.
Near-net-shape and material efficiency advantages
The most significant advantage of sintered metal parts is their near-net-shape capability. Because the component emerges from the die very close to its final dimensions, material utilization routinely exceeds 95%. This efficiency not only stabilizes raw material costs but also drastically reduces the carbon footprint associated with processing and recycling metal chips. Furthermore, the ability to mold functional features like splines, gear teeth, and keyways directly into the part eliminates the need for expensive secondary broaching or milling operations.
Limits in strength, porosity, and feature design
Despite these benefits, sintered metal parts possess physical constraints primarily tied to their density. Even after high-temperature sintering, standard powder metallurgy parts retain a void volume of 10% to 15%. This inherent porosity acts as a stress concentrator, resulting in lower tensile strength, reduced ductility, and inferior impact resistance when compared to fully dense wrought or forged metals. Additionally, the uniaxial pressing method limits feature design; lateral holes, undercuts, and reverse tapers cannot be molded in the primary operation and must be machined afterward.
When to choose sintered parts vs machining or casting
The decision to specify a sintered part over a machined or cast alternative hinges on production scale and mechanical demands. Sintered metal is the optimal choice for high-volume production (for instance, 50,000 or more units annually) of moderately stressed components where tooling costs are easily absorbed. Conversely, CNC machining is superior for low-volume production runs (under 5,000 units), rapid prototyping, or when maximum material strength is non-negotiable. Casting remains the preferred method for exceptionally large components exceeding 2 to 5 kilograms, or for complex internal cavities that cannot be achieved through powder compaction.
How to source and specify sintered metal parts
Successfully procuring sintered metal parts requires clear communication between the design engineering team and the manufacturing partner. A well-defined specification strategy ensures the final component meets both functional and budgetary targets.
Defining application and performance requirements
The first step in sourcing is to comprehensively define the application and performance requirements. Engineers must specify whether the part will undergo high cyclic loading, which may necessitate secondary heat treatment or high-density processing. It is also crucial to differentiate between apparent hardness (the macro-hardness reading that includes pores) and particle hardness when defining material specifications. If the component will be exposed to corrosive environments, buyers must mandate specific alloy grades, such as 316L stainless steel, or require secondary resin impregnation to seal the surface pores against moisture ingress.
Commercial factors: tooling, volume, and secondary operations
Commercial and logistical factors heavily influence the sourcing timeline and overall project viability. Tooling life for powder metallurgy is exceptionally long, frequently spanning 100,000 to 500,000 cycles before significant refurbishment or replacement is required. However, buyers must account for the initial lead times required to design, cut, and validate these tools, which typically run between 8 and 12 weeks. If the part design mandates secondary operations like tapping, plating, or grinding, procurement teams should assess how these additional steps impact the final unit cost and overall supply chain velocity.
Supplier selection and decision guidance
Selecting the right supplier is the final critical step in the procurement process. Organizations should prioritize suppliers with robust quality management systems, looking for ISO 9001 certification as a baseline, or IATF 16949 certification if supplying the automotive sector. Buyers should also evaluate the supplier's in-house capabilities. A vendor that manages blending, compaction, sintering, and secondary machining under one roof will offer better traceability, tighter quality control, and reduced logistical risks compared to a supplier that heavily outsources critical finishing operations.
Key Takeaways
- The most important conclusions and rationale for sintered metal parts
- Specs, compliance, and risk checks worth validating before you commit
- Practical next steps and caveats readers can apply immediately
Frequently Asked Questions
What are sintered metal parts?
They are components made by compacting metal powder in a die and sintering it below the metal’s melting point to create a strong, near-net-shape part.
Which materials are commonly used for sintered metal parts?
Common options include iron, carbon steel, copper, bronze, and stainless steel such as 316L, chosen based on strength, wear resistance, and corrosion needs.
Why choose sintered metal parts instead of machining?
They reduce material waste, support high-volume production, and deliver repeatable dimensions, often cutting scrap below 5% compared with much higher waste in machining.
What tolerances and surface finish can sintered metal parts achieve?
Standard press-and-sinter parts often hold about ±0.05 mm on a 25 mm dimension, with typical as-sintered surface finish around Ra 1.6–3.2 µm.
Can JHPIM help with custom sintered metal parts for mass production?
Yes, JHPIM focuses on powder metallurgy solutions and can support material selection, part design, and scalable production for custom sintered components.
