Introduction
Modern manufacturing increasingly relies on components made by compacting and sintering metal powders, especially when tight tolerances, repeatability, and efficient material use matter at scale. This article explains how powder metallurgy parts are produced, why the process often reduces waste and secondary machining, and where it delivers the strongest economic and technical advantages over casting or conventional machining. You will also see the main trade-offs, typical material and design considerations, and the industries that use these parts for structural, wear-resistant, and precision applications, providing a practical foundation for evaluating whether the method fits a specific component or production program.
Why powder metallurgy parts matter in modern manufacturing
Powder metallurgy parts represent a critical pillar in high-volume, precision manufacturing, offering a highly efficient alternative to traditional subtractive machining and casting. By consolidating metal powders under high pressure and bonding them through controlled heat, manufacturers can produce complex, net-shape components that require minimal secondary processing. This technology has evolved from producing simple bearings to engineering highly stressed structural components utilized in demanding industrial environments.
The strategic importance of this manufacturing method lies in its ability to decouple part complexity from processing time. Unlike CNC machining, where every additional feature adds cycle time and tooling wear, the compaction of metal powders forms complex geometries in a single stroke. This distinct approach to part generation fundamentally alters the cost structure and scalability of industrial component procurement.
How they improve cost control and material efficiency
A primary driver for adopting this technology is the dramatic improvement in material utilization. Traditional subtractive manufacturing methods often suffer from poor buy-to-fly ratios, where extensive machining can result in material yields as low as 40% to 50%. In stark contrast, the production of powder metallurgy parts routinely achieves material utilization rates of 95% to 97%. Because the process only uses the exact volume of powder required to fill the die cavity, scrap generation is virtually eliminated.
This near-zero waste profile significantly enhances cost control, particularly when working with expensive alloys such as stainless steel, bronze, or specialized magnetic materials. Furthermore, the energy footprint per component is substantially lower than that of casting or forging, as the metal does not need to be entirely melted into a liquid state. Sintering occurs below the melting point of the primary constituent, yielding measurable reductions in thermal energy consumption per production run.
Where they create competitive value
The competitive value of this process becomes evident in production environments demanding tight repeatability at high volumes. Powder metallurgy excels in the creation of intricate geometries, such as asymmetric cams, internal splines, and complex gear profiles, which are notoriously slow and expensive to machine. Production rates for compaction presses typically range from 500 to 1,000 parts per hour, depending on part size and press tonnage.
Furthermore, the tooling life in this industry is exceptionally long. A well-maintained tungsten carbide die can often exceed 100,000 compaction cycles before requiring major refurbishment. This longevity allows manufacturers to amortize tooling costs over massive production runs, driving the per-unit cost down to levels that traditional forging or machining cannot match, provided the annual volume justifies the initial die investment.

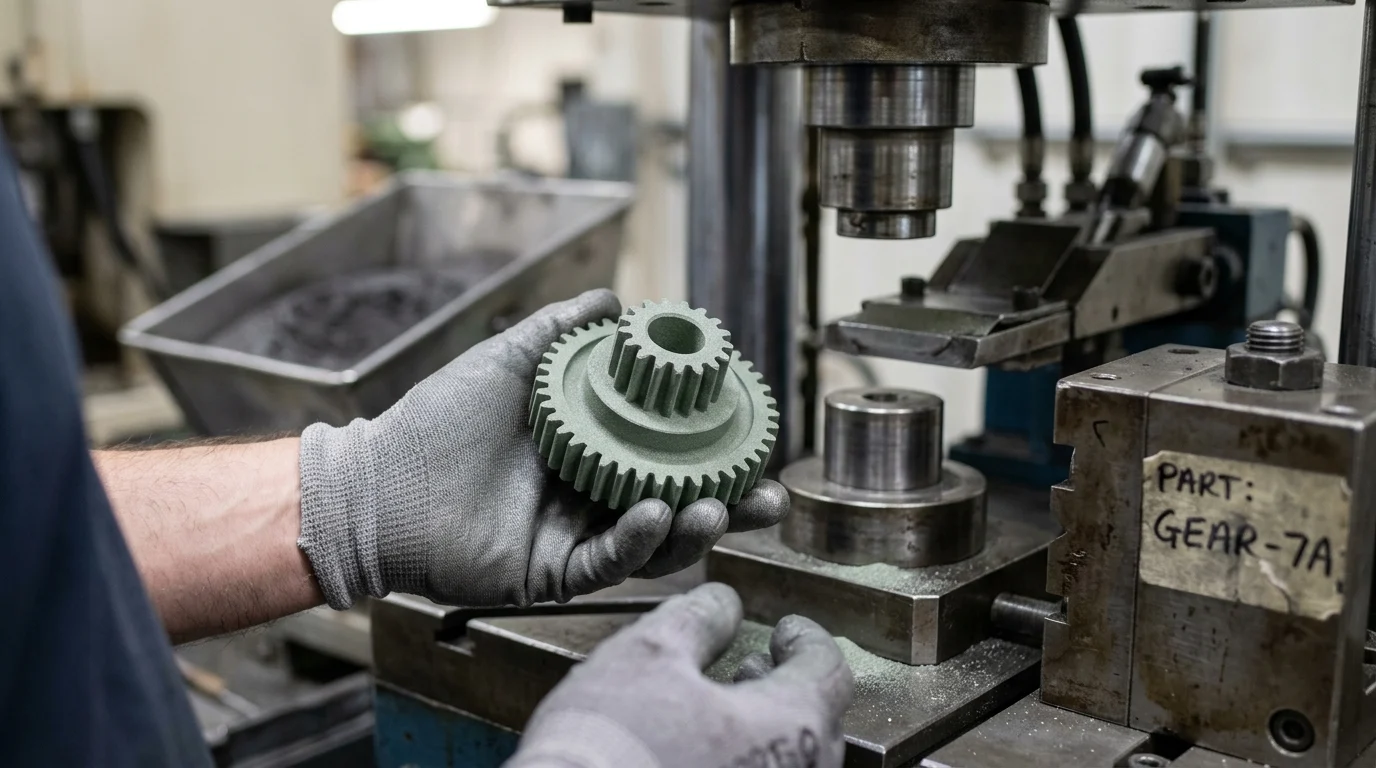

What powder metallurgy parts are and how the process works
The production of powder metallurgy parts relies on a highly controlled metallurgical sequence, transforming loose metallic dust into a rigid, high-strength component. This transformation is governed by precise control of material properties, mechanical pressure, and thermal dynamics. Understanding this sequence is essential for engineers aiming to design components optimized for the process.
Raw materials, powder characteristics, and design rules
The process begins with the careful selection and blending of raw metal powders, primarily iron, copper, nickel, and stainless steel. The characteristics of these powders—specifically particle size, shape, and apparent density—dictate the final mechanical properties of the component. Particle sizes typically range from 20 to 150 microns. Water-atomized powders, which have irregular shapes, are frequently used because they interlock effectively during compaction, providing high green strength (the structural integrity of the part before sintering).
Designing for this process requires adherence to specific geometric rules governed by the vertical flow of powder and the unidirectional stroke of the compaction press. Designers must avoid undercuts, cross-holes, and reverse tapers, as these features would prevent the part from being ejected from the die. Additionally, thin walls and narrow projections should be minimized; a minimum wall thickness of 1.5 mm is generally required to ensure uniform powder fill and prevent tooling fractures under extreme pressure.
Compaction, sintering, sizing, and secondary operations
The core manufacturing sequence initiates with compaction, where the blended powder is fed into a precision die and subjected to immense pressure, typically ranging from 20 to 50 tons per square inch (tsi). This pressure mechanically locks the particles together, forming a fragile 'green' part. The components are then transferred to a continuous belt furnace for sintering. During sintering, parts are heated in a controlled atmosphere (often nitrogen-hydrogen or endothermic gas) to a temperature just below the melting point of the base metal—approximately 1120°C (2050°F) for iron-based alloys.
At this temperature, solid-state diffusion occurs, causing the metal particles to fuse at the molecular level, dramatically increasing the part's strength. Post-sintering, parts may undergo secondary operations to enhance specific attributes. Sizing or coining involves pressing the sintered part a second time to achieve tighter dimensional tolerances. Another common secondary step is oil impregnation, leveraging the inherent porosity of the material; parts like self-lubricating bearings can be engineered to retain 15% to 25% oil by volume, providing lifetime lubrication in service.
How powder metallurgy parts compare with cast, forged, and machined
Selecting the optimal manufacturing process requires a rigorous comparison of material properties, dimensional capabilities, and overall economics. While powder metallurgy parts offer distinct advantages in volume production, they possess unique metallurgical characteristics that differentiate them from fully dense wrought, cast, or machined alternatives. Decision-makers must weigh these factors against the mechanical demands of the end application.
Performance, tolerance, density, and surface finish trade-offs
The most significant differentiator between sintered metals and cast or forged equivalents is density. While a forged steel component achieves 100% theoretical density, standard powder metallurgy parts typically range from 80% to 95% density due to residual microscopic porosity. This porosity inherently reduces the ultimate tensile strength and impact resistance compared to a wrought counterpart. However, high-density techniques, such as warm compaction or copper infiltration, can push densities above 95% when higher mechanical performance is mandated.
In terms of dimensional accuracy, the compaction and sintering process is highly competitive. Standard processing routinely holds tolerances of IT7 to IT9, often eliminating the need for secondary turning or milling. The surface finish of a sintered component is also remarkably consistent; as-sintered parts generally exhibit a surface roughness (Ra) of 1.5 to 3.2 micrometers, which can be further refined to Ra 0.8 micrometers through secondary sizing or tumbling operations.
Cost and complexity comparison for decision-makers
When evaluating the total cost of ownership, the economic viability of sintered parts depends heavily on production volume and part complexity. The process requires significant upfront capital for precision dies and punches, but offers an exceptionally low variable cost per unit. Conversely, CNC machining requires minimal specialized tooling but incurs high variable costs due to extended cycle times and material waste.
| Manufacturing Process | Typical Material Utilization | Tooling Cost | Economic Production Volume (MOQ) | Relative Part Complexity |
|---|---|---|---|---|
| Powder Metallurgy | 95% - 97% | High ($5k - $50k) | > 10,000 units/year | High (2D profiles, gears) |
| CNC Machining | 40% - 60% | Low | 1 - 5,000 units/year | Very High (3D, undercuts) |
| Closed-Die Forging | 70% - 85% | Very High | > 20,000 units/year | Moderate |
| Investment Casting | 85% - 90% | Moderate to High | > 1,000 units/year | Very High (internal cavities) |
As illustrated in the comparison, the critical threshold for adopting sintered components typically falls around 10,000 units annually. Below this volume, the amortization of the compaction tooling becomes economically prohibitive, making machining or investment casting a more prudent financial choice for decision-makers.
Best applications and quality requirements for powder metallurgy parts
The unique properties generated by the compaction and sintering process make these components ideal for specific, high-stress environments. Because the process allows for the precise blending of custom alloy compositions and the controlled engineering of porosity, components can be tailored to meet strict regulatory and performance standards across heavy industry.
Use cases in automotive and industrial equipment
The automotive sector remains the dominant consumer of powder metallurgy parts, accounting for approximately 70% of global production. Within internal combustion engines and automatic transmissions, sintered components are ubiquitous. Connecting rods, timing sprockets, synchronizer hubs, and variable valve timing (VVT) rotors are heavily reliant on this technology. The ability to mass-produce complex gear teeth with built-in weight reduction pockets makes it an irreplaceable process for automotive powertrain engineers.
Beyond automotive applications, industrial equipment relies heavily on sintered metals for fluid power and mechanical actuation. Hydraulic pump gears, power tool planetary gear carriers, and lawn and garden machinery components are prime use cases. In these applications, the inherent vibration-dampening characteristics of the micro-porous structure provide a distinct acoustic advantage over fully dense machined steel gears, resulting in quieter operation in consumer-facing industrial equipment.
Testing, dimensional control, porosity, and standards
Quality assurance in this sector is heavily regulated by industry standards, most notably those published by the Metal Powder Industries Federation (MPIF). MPIF Standard 35 is the critical benchmark, providing design engineers with minimum strength, hardness, and density specifications for commercial alloys. Dimensional control is rigorously monitored using automated vision systems and coordinate measuring machines (CMMs) to ensure batch-to-batch consistency over millions of cycles.
Porosity control is a critical testing parameter. The density of a part is typically verified using the Archimedes principle (water displacement). For structural parts, excessive porosity can lead to catastrophic failure under fatigue loading, whereas for self-lubricating bearings, a precise interconnected porosity network of 18% to 22% must be maintained to ensure adequate oil retention.
| Material Category | MPIF Designation | Typical Density (g/cm³) | Minimum Yield Strength (MPa) | Typical Application |
|---|---|---|---|---|
| Iron-Copper | FC-0208-50 | 6.4 - 6.8 | 340 | Sprockets, pulleys |
| Nickel Steel | FN-0205-105 | 6.9 - 7.3 | 720 | High-stress transmission gears |
| Sintered Bronze | CT-1000-K19 | 6.0 - 6.4 | 130 | Self-lubricating bearings |
| Stainless Steel | SS-316L-15 | 6.4 - 6.8 | 100 | Corrosion-resistant pump parts |

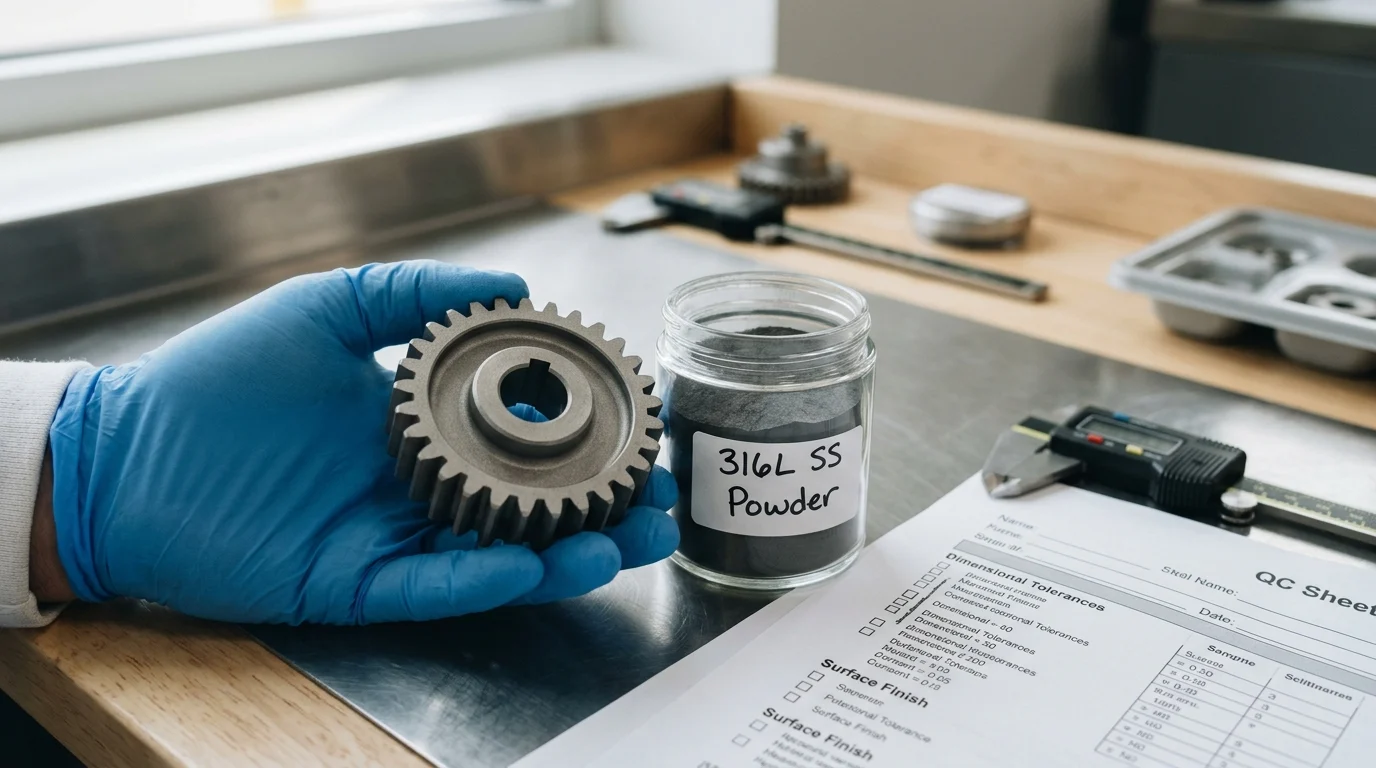

How buyers should evaluate powder metallurgy suppliers
Transitioning a component to a sintered metal design requires careful supplier vetting. The highly specialized nature of the compaction presses, sintering furnaces, and tooling design means that not all manufacturers possess the exact capabilities required for every geometry or alloy. Buyers must evaluate potential partners based on technical capability, quality control infrastructure, and long-term economic alignment.
Sourcing criteria, tooling economics, and lead times
When evaluating sourcing criteria, buyers must closely examine a supplier's press tonnage capacity. A component with a large surface area perpendicular to the pressing direction requires immense force to achieve the required green density. Suppliers typically operate a range of presses from 10-ton mechanical presses for small bearings up to 1,000-ton hydraulic presses for large automotive structural components. Aligning the part's footprint with the supplier's press availability is the first step in qualification.
Tooling economics and lead times are also critical sourcing factors. Capital expenditure for precision compaction dies typically ranges from $5,000 to $50,000, depending heavily on whether the part requires a multi-level tool (involving multiple independent lower punches to form steps or flanges). Because these tools are custom-machined from tool steel and tungsten carbide, lead times for initial samples (T1) generally span 8 to 12 weeks. Buyers must factor this development timeline into their product launch schedules.
A decision framework for selecting powder metallurgy
To mitigate risk and ensure optimal return on investment, procurement teams should employ a strict decision framework when selecting powder metallurgy. The first gate in this framework is volume: components should generally have an annual projected volume exceeding 15,000 units to comfortably absorb tooling costs. The second gate is physical size: while technological advancements have expanded capabilities, the most cost-effective parts typically weigh under 2.5 kilograms and have a maximum footprint of 150 square centimeters.
Finally, buyers must evaluate the supplier's in-house secondary operations to ensure they can efficiently handle
Key Takeaways
- The most important conclusions and rationale for powder metallurgy parts
- Specs, compliance, and risk checks worth validating before you commit
- Practical next steps and caveats readers can apply immediately
Frequently Asked Questions
What are the main advantages of powder metallurgy parts?
They offer 95%–97% material utilization, tight repeatability, complex net-shape geometry, and low per-part cost in high-volume production.
How are powder metallurgy parts manufactured?
Metal powder is blended, compacted in a precision die, sintered below melting temperature, then sized or finished if tighter tolerances are needed.
Which industries commonly use powder metallurgy parts?
Automotive, power tools, appliances, industrial equipment, and magnetic component sectors commonly use PM parts for gears, cams, bushings, and structural parts.
What design limits should engineers consider for powder metallurgy parts?
Avoid undercuts, reverse tapers, and cross-holes; keep walls generally above 1.5 mm to support filling, ejection, and tool life.
